Benefits
- ATEX-Certified Safety: Specifically engineered with ATEX-rated options to ensure safe, spark-free operation in explosive-risk zones, including oil refineries, chemical processing plants, and offshore rigs.
- Operator Comfort: Designed with advanced engineering to minimize vibration and noise, reducing fatigue during long-duration cutting tasks.
- Enhanced Safety Controls: Integrated STOP/Isolator button on the handle allows for immediate tool deactivation, providing peace of mind during rapid blade changeovers.
- Reliable Cold-Cutting Power: Uses a high-performance, piston-driven pneumatic motor to deliver consistent, heavy-duty cutting force without generating heat.
- Industrial Versatility: Ideal for cutting through high-grade metals, including steel, stainless steel, cast iron, and aluminum.
- Ergonomic Portability: Its compact and lightweight frame allows for superior maneuverability in restricted spaces, confined areas, or when working in overhead positions.
- Customizable Handling: Available with optional inside-trigger configurations (CL50FT or CL75FT) for specific handheld requirements (Note: Not for use with clamps).
Applications & Usage

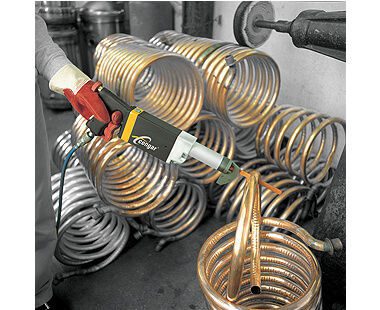

- Hazardous Environments: The primary choice for cutting pipes, structural steel, and metal components in volatile environments where electric tools are strictly prohibited.
- Heavy Industry & Marine: Extensively used in shipbuilding, ship repair, aircraft maintenance, and general fabrication.
- Energy & Petrochemical: Essential for maintenance crews in oil, gas, and petrochemical sectors.
- Mining: Highly effective in both underground and surface mining operations for cutting structural components.
- Controlled Demolition: Efficiently handles metal structures, rebar, conduit, and embedded materials during decommissioning tasks.
- Blade Flexibility:
- CL50: Compatible with any 1/2″ (12mm) wide Bi-metal blade. Easily convertible to CL75 specifications by switching the nosepiece.
- CL75: Optimized for 3/4″ (19mm) wide Bi-metal machine blades, providing extra stability for heavy-duty cuts.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Variants | CL50, CL75 (ATEX) / CL50FT, CL75FT |
| Motor Power | 1 HP |
| Stroke Length | 1-3/4″ |
| Strokes per Minute | 1200 |
| Weight | 5-12 lbs (approx. 2.5 kg) |
| Dimensions (LxWxH) | 15-3/4″ x 5-1/4″ x 1-5/8″ |
| Air Consumption | 5-3/4 CFM |
| Air Pressure | 90 PSI |
| Air Connection | 1/4″ NPT |
| Noise / Vibration | 83 dB(a) / 3.69 m/s² |
| Standard Kit Includes | Carrying case, 5x MC220/24 blades, tool oil, manual, Allen key |
